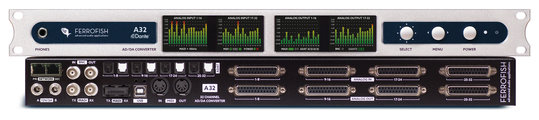

The A32 Dante Version has an additional interface with 64 digital inputs and 64 digital outputs, which can be easily integrated into existing DANTE networks. Alternatively, with an interconnection of two A32 DANTEs, a live recording on the computer of up to 64 channels is possible at any time. In this case, a separate sound card (such as, for example, when using the ADAT or MADI ports) is not necessary.
The intuitive operating concept and the redundancy options, as well as the multiple submix and routing possibilities, make the A32 DANTE an ideal component of every DANTE interconnected system.
The A32 Dante also features MADI I/O. Up to 64 channels can be transferred using a simple pair of glass fiber cables (or coaxial cable) spanning a distance of up to 2 kilometers (1.2 miles). Besides MADI, the A32 Dante also offers full ADAT integration.

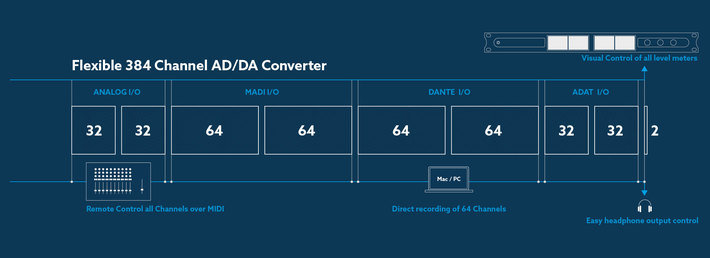

Four fully-fledged ADAT I/O ports allow use of all 64 analogue channels, even without MADI. Thanks to the MIDI over MADI feature, the A32 Dante can also be remote controlled using MIDI data embedded in the same MADI cable. The audio transfer between the MADI input and MADI output is done with zero latency!
We know you need a reliable system. Thats why we have two power inputs. If one power supply fails, you see a warning on the TFT screens, and you can search for the failure while the A32 Dante still works with the other supply.
MADI is also laid out redundant: If you connect both optical and coax, the input automatically switches to the other source if sync is lost.
High quality converter chips with excellent audio performance are supported by a sophisticated analogue amplifier circuit.
The high quality analogue circuit is partnered on the digital side with a Sharc DSP. This processor takes great care of the digital audio with it's floating point arithmetic and 80 bit wide accumulator, so that on the digital side, no bits are lost!
The new visual control concept of the A32 Dante embarks on a new path: Besides the precise level meters of all 64 analogue channels, the four TFT displays offer a very new, self explanatory method of operation – it's unlikely you will ever need the manual!
You don't need to install a program to have the ability to see the levels and adjust everything. Just take a look on the A32 Dante, and you can see what's happening at any time, with all channels clearly visible on the high resolution level meters.
If you've ever wanted to know exactly what's happening on your analogue or digital channels, you'll find the A32 Dante's headphone connection extremely useful. With one touch of the encoder, you can access the A32 Dante's headphone screen and giving you control over direct monitoring.
From there you can set the headphone volume and select the source for the headphone output, allowing you to monitor all incoming and outgoing audio signals on the A32 Dante. You can also store up to seven mixes which are selectable via the device's user interface.
